Work area: 3.000mm x 1.400mm

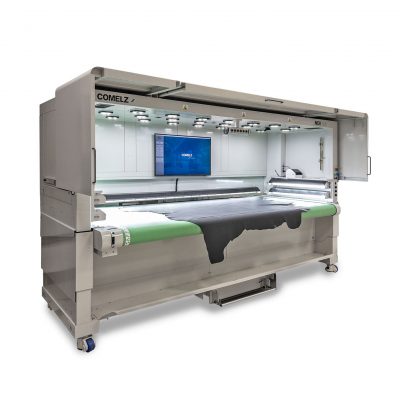

NEK Plus
The best hide digitization tool has evolved.
The adjustable work area and new multi-directional lighting system.
SECTORE
Footwear, Leather Goods, Automotive.
CONFIGURATION
Leather measurement/classification and consumption calculation, leather marking, Comelz nesting.
Digitization of skins for automotive and multiple industries
SINGLE OR MULTIPLE HIDES
The same machine can process single large hides for the automotive or furniture sectors or multiple smaller hides for the shoe/leather goods sectors. An adjustable vacuum system can be configured for every type of hides.
UNIQUE LIGHT SYSTEM
A total of 600 individual power LEDs.
- 336 LED are used for diffused light.
- 264 LED are equipped with special focus lenses for directional light.
- Adjustable hue (from 2700K warm white to 6500K cold white) for diffused light.
MARKING PEN
The marking of defects, quality areas, cut direction, and all other characteristics is completely digital. Our digitizing pen is extremely accurate, fast, and simple to use thanks to a “single-button” operation.
NESTING AND DIGITIZATION
- Hide marking only (automatic nesting is carried out directly in the machine in real time and in parallel with the cutting).
- Hide marking (defects and quality areas) and integrated Comelz Nesting engine for piece nesting in different modes (manual, manual with automatic completion, automatic parameterizable).
- Measurement/classification of hides and consumption calculation (simulations of cutting one or more hides).
ADJUSTABLE AMBIENT SHIELD
Independent sliding bulkheads to shield of the work area from unwanted external lights.
LIGHTING INTENSITY AND COLOUR CONTROL
Adjustable hue (from 2700K warm white to 6500K cold white) for diffused light.
Different configurations available for different types or colors of hides.
GRAZING LIGHTS AND SKY LIGHTS
With this unique, innovative patent pending system it is possible to illuminate every area of the hide from multiple directions allowing to detect defects that before was possible only when the hides were placed under stretch conditions and in a highly tilted position that is non-ergonomic for the operator.
CHALK DETECTION
An optional software can automatically detect defects of hides pre-marked with chalks or crayons .
